Overhead Bare Conductor ACSR 100/17mm2 Aluminum Conductor With
Steel reinforced Cable
Bare Conductor Electrical Cable APPLICATION
ACSR conductors are widely used for electrical power transmission
over long distances, since they are ideal for long overhead lines
spans. They are also used as a messenger for supporting overhead
electrical cables.
Bare Conductor Electrical Cable STANDARD
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B
232M / DIN 48204 / JIS C 3110 standards.
Note: The values of current rating mentioned in above Table are based on
wind velocity of 0.6 metre/second, solar heat radiation of 1200
watt/metre2, ambient temperature of 50° C & conductor temperature
of 80°C.
Bare Conductor Electrical Cable CONSTRUCTION

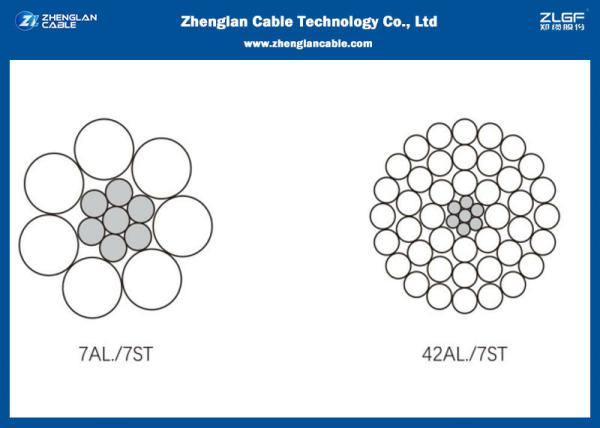

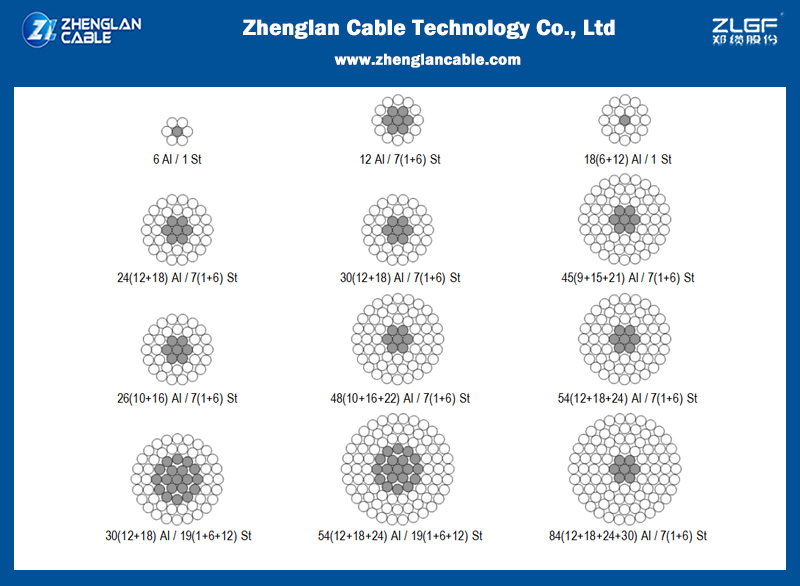

ACSR conductors are formed by several wires of aluminium and
galvanized steel, stranded in concentric layers. The wire or wires
which form the core, are made of galvanized steel and the external
layer or layers, are of aluminium. Galvanized steel core consist
normally of 1, 7 or 19 wires. The diameters of steel and aluminium
wires can be the same, or different.
By varying the relative proportions of aluminium and steel, the
required characteristics for any particular application can be
reached. A higher U. T. S. Can be obtained, by increasing steel
content, and a higher current carrying capacity by increasing
aluminium content.
ELECTRICAL PROPERTIES
| density@20ºC | Aluminium: 2.703 kg/dm |
| Galvanised Steel: 7.80 kg/dm |
| Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
| resistivity@20°C | Aluminium: Should not exceed 0.028264 |
linear Expansivity
| Aluminium: 23 x10 (°C) |
| Galvanised Steel: 11.5 x10 (1/°C) |
SERVICE CONDITIONS
| Ambient Temperature | -5°C - 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 - 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
TECHNICAL DATA
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion |
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
Overhead Bare Conductor ACSR 100/17mm2 Aluminum Conductor With
Steel reinforced Cable CONSTRUCTION PARAMETERS
• IEC 60189
| Code Number | Area | No. of Wires | Wire Dia. | Diameter | Linear Mass | A1/S1 A Conductor Rated Strength | Max. DC Resistance at 20°C |
| Alum. | Steel | Total | Alum. | Steel | Core | Cond. |
| mm² | mm² | mm² | mm² | Al. | St. | mm | mm | mm | mm | kg/km | kN | Ω/km |
| 16 | 16 | 2.7 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.64 | 5.53 | 64.6 | 6.08 | 1.7934 |
| 25 | 25 | 4.2 | 29.2 | 6 | 1 | 2.3 | 2.3 | 2.3 | 6.91 | 100.9 | 9.13 | 1.1478 |
| 40 | 40 | 6.7 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 14.4 | 0.7174 |
| 63 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11 | 254.4 | 21.63 | 0.4555 |
| 100 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 34.33 | 0.2869 |
| 125 | 125 | 6.9 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 29.17 | 0.2304 |
| 125 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 45.69 | 0.231 |
| 160 | 160 | 8.9 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 36.18 | 0.18 |
| 160 | 160 | 26.1 | 186 | 26 | 7 | 2.8 | 2.18 | 6.53 | 17.7 | 644.9 | 57.69 | 0.1805 |
| 200 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 44.22 | 0.144 |
| 200 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.3 | 19.8 | 806.2 | 70.13 | 0.1444 |
| 250 | 250 | 24.6 | 275 | 22 | 7 | 3.8 | 2.11 | 6.34 | 21.6 | 880.6 | 68.72 | 0.1154 |
| 250 | 250 | 40.7 | 291 | 26 | 7 | 3.5 | 2.72 | 8.16 | 22.2 | 1007.7 | 87.67 | 0.1155 |
| 315 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.3 | 79.03 | 0.0917 |
| 315 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 106.83 | 0.0917 |
| 400 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 98.36 | 0.0722 |
| 400 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 123.04 | 0.0723 |
| 450 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 107.47 | 0.0642 |
| 450 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 138.42 | 0.0643 |
| 500 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 199.41 | 0.0578 |
| 500 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.3 | 30.9 | 1887.9 | 153.8 | 0.0578 |
| 560 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 133.74 | 0.0516 |
| 560 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.9 | 32.7 | 2103.4 | 172.59 | 0.0516 |
| 630 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 150.45 | 0.0459 |
| 630 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.6 | 34.7 | 2366.3 | 191.77 | 0.0459 |
| 710 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 169.56 | 0.0407 |
| 710 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.3 | 36.8 | 2666.8 | 216.12 | 0.0407 |
| 800 | 800 | 34.6 | 835 | 72 | 7 | 3.76 | 2.51 | 7.52 | 37.6 | 2480.2 | 167.41 | 0.0361 |
| 800 | 800 | 66.7 | 867 | 84 | 7 | 3.48 | 3.48 | 10.4 | 38.3 | 2732.7 | 205.33 | 0.0362 |
| 800 | 800 | 101 | 901 | 54 | 19 | 4.44 | 2.61 | 13 | 39.1 | 3004.9 | 243.52 | 0.0362 |
| 900 | 900 | 38.9 | 939 | 72 | 7 | 3.99 | 2.66 | 7.98 | 39.9 | 2790.2 | 188.33 | 0.0321 |
| 900 | 900 | 75 | 975 | 84 | 7 | 3.69 | 3.69 | 11.1 | 40.6 | 3074.2 | 226.5 | 0.0322 |
| 1000 | 1000 | 43.2 | 1043 | 72 | 7 | 4.21 | 2.8 | 8.41 | 42.1 | 3100.3 | 209.26 | 0.0289 |
| 1120 | 1120 | 47.3 | 1167 | 72 | 19 | 4.45 | 1.78 | 8.9 | 44.5 | 3464.9 | 234.53 | 0.0258 |
| 1120 | 1120 | 91.2 | 1211 | 84 | 19 | 4.12 | 2.47 | 12.4 | 45.3 | 3811.5 | 283.17 | 0.0258 |
| 1250 | 1250 | 102 | 1352 | 84 | 19 | 4.35 | 2.61 | 13.1 | 47.9 | 4253.9 | 316.04 | 0.0232 |
| 1250 | 1250 | 52.8 | 1303 | 72 | 19 | 4.7 | 1.88 | 9.4 | 47 | 3867.1 | 261.75 | 0.0231 |
About Us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable
and wire with over 20years' experience.

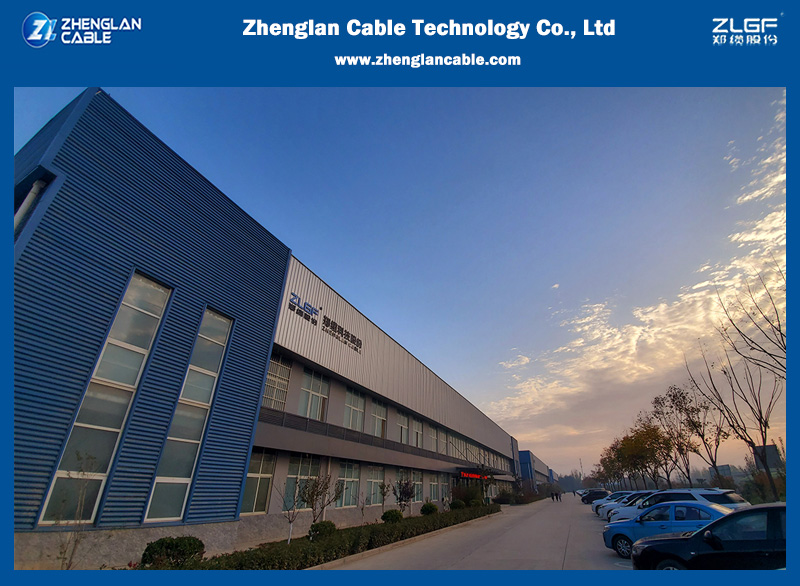

Our factory workshop taking up about 60000SQM is located in Wuzhi
